Introduction
In the quest for efficient and advanced propulsion systems, ion propulsion has emerged as a groundbreaking technology that promises to revolutionize space exploration. With its electrifying thrust and remarkable efficiency, ion propulsion is propelling us towards a future of enhanced space missions and ambitious interstellar voyages. In this article we will cover this propulsion system in detail. Let’s start!
What is Ion Propulsion?

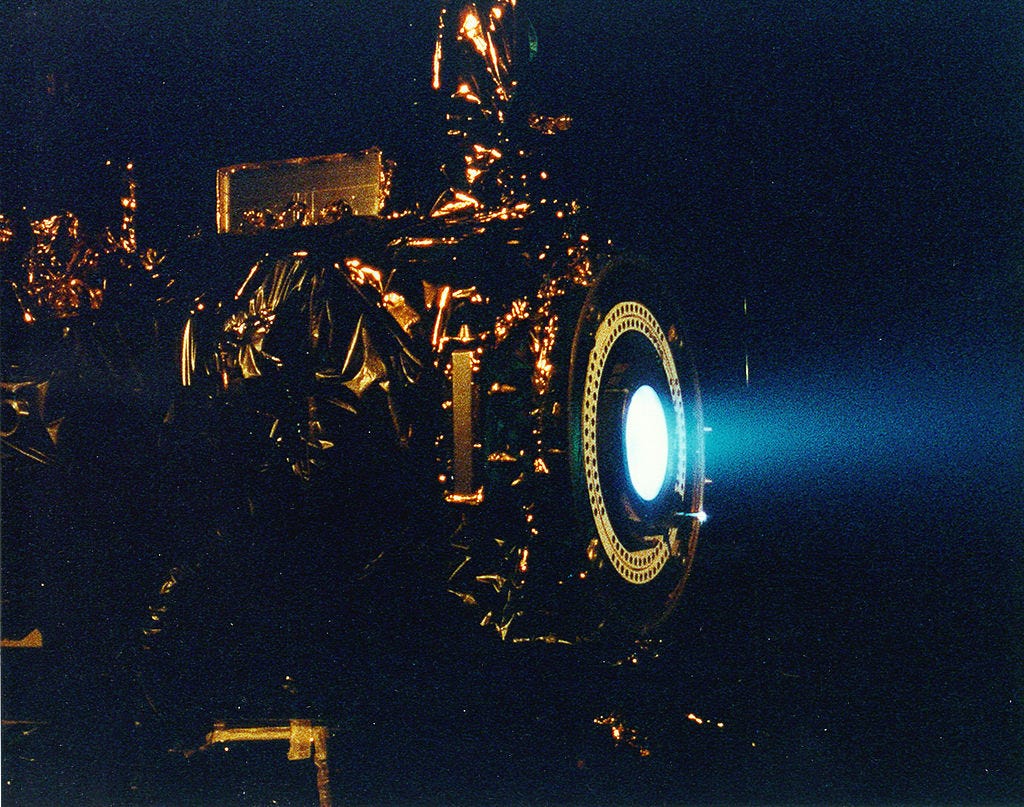

Ion propulsion, also known as ion thrusters, is a propulsion system that employs the principles of electrostatics to accelerate and expel charged particles, or ions, generating thrust. Unlike conventional chemical propulsion systems that rely on the expulsion of hot gases, ion propulsion operates by ionizing a propellant gas, usually xenon, and accelerating the resulting ions to high velocities.
Working Principle
The basic working principle of an ion propulsion system involves several key components: the ionization chamber, the electrostatic accelerator, and the ion thruster.
Ionization Chamber: The ionization chamber is where the propellant gas, typically xenon, is introduced. Inside the chamber, neutral atoms of the propellant are bombarded by electrons emitted from an electron emitter. This process ionizes the propellant gas by removing one or more electrons from its atoms, creating positively charged ions and free electrons.
Electrostatic Accelerator: Once the propellant gas is ionized, the resulting ions are accelerated by a high-voltage electrostatic field in the electrostatic accelerator. The accelerator consists of a series of grids, usually made of fine wire mesh or perforated metal, that are charged to high voltages. The ions are attracted to the positively charged grids and pass through them, gaining kinetic energy in the process. As the ions pass through the grids, the electrostatic field accelerates them to high velocities.
Ion Thruster: After being accelerated in the electrostatic accelerator, the high-speed ions are expelled through the ion thruster, creating thrust that propels the spacecraft forward. The ion thruster consists of a nozzle that directs the accelerated ions in a specific direction. As the ions are expelled from the thruster, they generate an equal and opposite reaction force, known as thrust, which propels the spacecraft in the opposite direction.
Basic Classification
Ion thrusters are categorized as either electrostatic or electromagnetic. The main difference is the method for accelerating the ions.
Electrostatic ion thrusters use the Coulomb force and accelerate the ions in the direction of the electric field.
Electromagnetic ion thrusters use the Lorentz force to accelerate the ions in the direction perpendicular to the electric field.
Electric power for ion thrusters is usually provided by solar panels. However, for sufficiently large distances from the sun, nuclear power may be used. In each case, the power supply mass is proportional to the peak power that can be supplied, and both provide, for this application, almost no limit to the energy.
Brief History of Ion Propulsion
Konstantin Tsiolkovsky was the first to introduce the idea of ion-based propulsion system in 1911. The origins of ion propulsion in practice, can be traced back to the mid-20th century when scientists and engineers began exploring electric propulsion concepts. A working ion thruster was built by Harold R. Kaufman in 1959 at the NASA Glenn Research Center facilities.

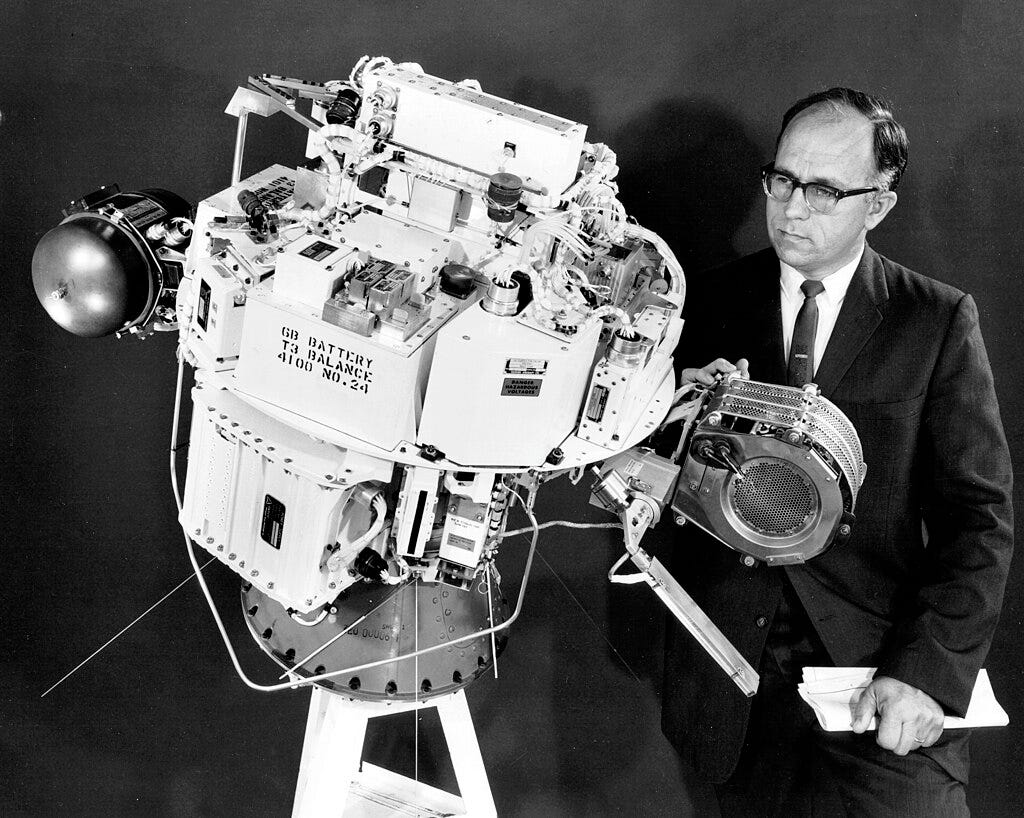

The first practical ion thruster, called the SERT-1 (Space Electric Rocket Test), was successfully tested by NASA in 1964. It successfully operated for the planned 31 minutes before falling to Earth. This test was followed by an orbital test, SERT-2, in 1970.Since then, significant advancements have been made in ion propulsion technology, leading to its application in various space missions.

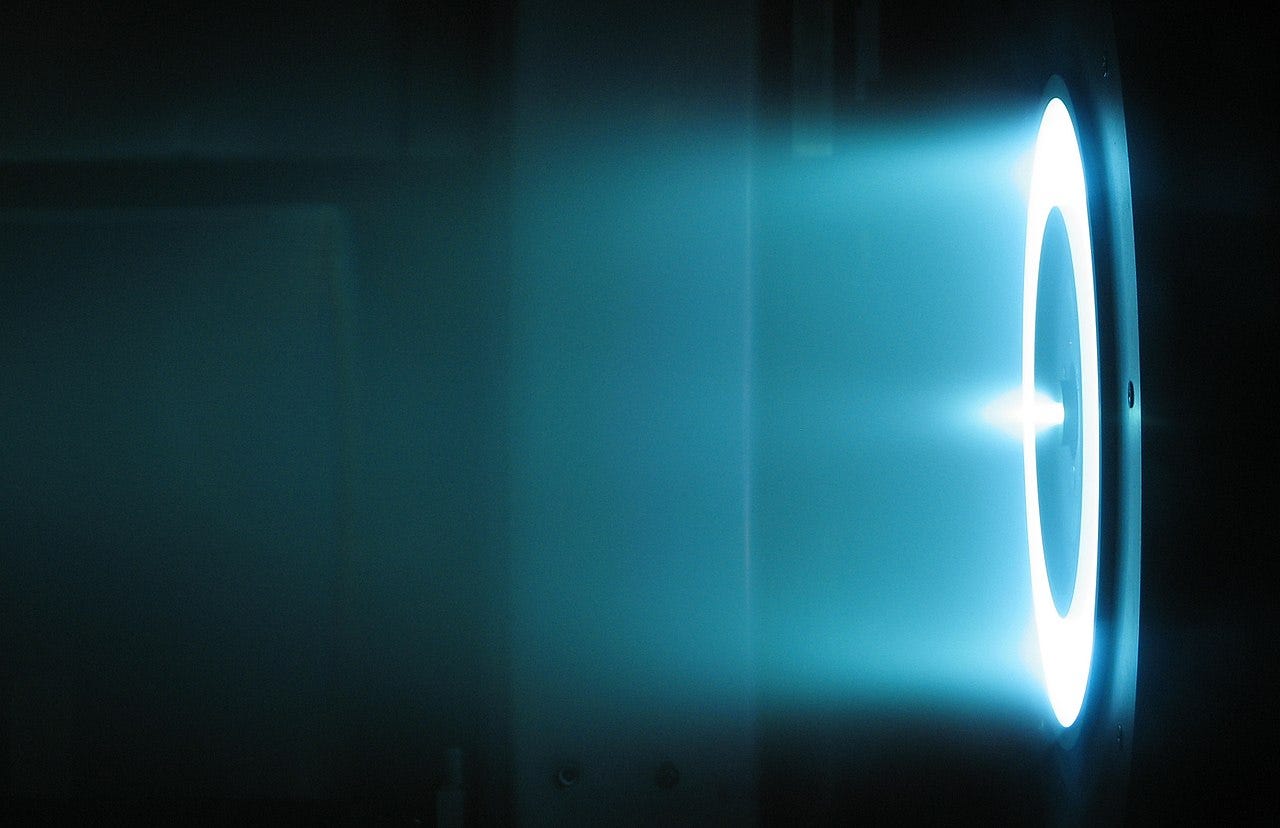

An alternate form of electric propulsion, the Hall-effect thruster, was studied independently in the United States and the Soviet Union in the 1950s and 1960s. Hall-effect thrusters operated on Soviet satellites from 1972 until the late 1990s, mainly used for satellite stabilization in north–south and in east–west directions.
Advantages and Disadvantages:
Ion propulsion offers several advantages over traditional chemical propulsion systems. Firstly, it provides significantly higher specific impulse, enabling spacecraft to achieve greater speeds while utilizing less propellant. This translates to extended mission durations and the capability to reach distant destinations. Ion thrusters also have high fuel efficiency, maximizing fuel utilization and reducing spacecraft mass. Additionally, they generate gentle thrust, reducing the stress on spacecraft structures. However, ion propulsion systems also have some limitations, including low thrust levels and the need for electrical power sources.
Comparison with Conventional Propulsion Systems
When compared to conventional chemical propulsion systems, ion propulsion showcases its superiority in terms of fuel efficiency and specific impulse. While chemical rockets provide high thrust for initial launch and maneuvers, ion thrusters excel in long-duration missions and deep space exploration. This makes ion propulsion an ideal choice for satellite station-keeping, interplanetary probes, and potential crewed missions to Mars and beyond.
Different Propellants
In ion propulsion, propellants are typically referred to as "ionizable gases" or "working gases" rather than traditional propellants used in chemical rockets. The choice of ionizable gases depends on their ability to be ionized and accelerated effectively in the ion propulsion system.
Xenon is the most commonly used propellant in ion propulsion system. It is easy to ionize, has a reasonably high atomic number, is inert and causes low erosion. However, xenon is globally in short supply and expensive. In the initial years, Starlink satellites used Krypton based Hall-effect thrusters which was later switched to Argon based thrusters. Argon being relatively abundant and inexpensive.
Many other elements like Mercury (later banned), Iodine, Bismuth, have also been used for specific design constraints.
Current Status and Applications

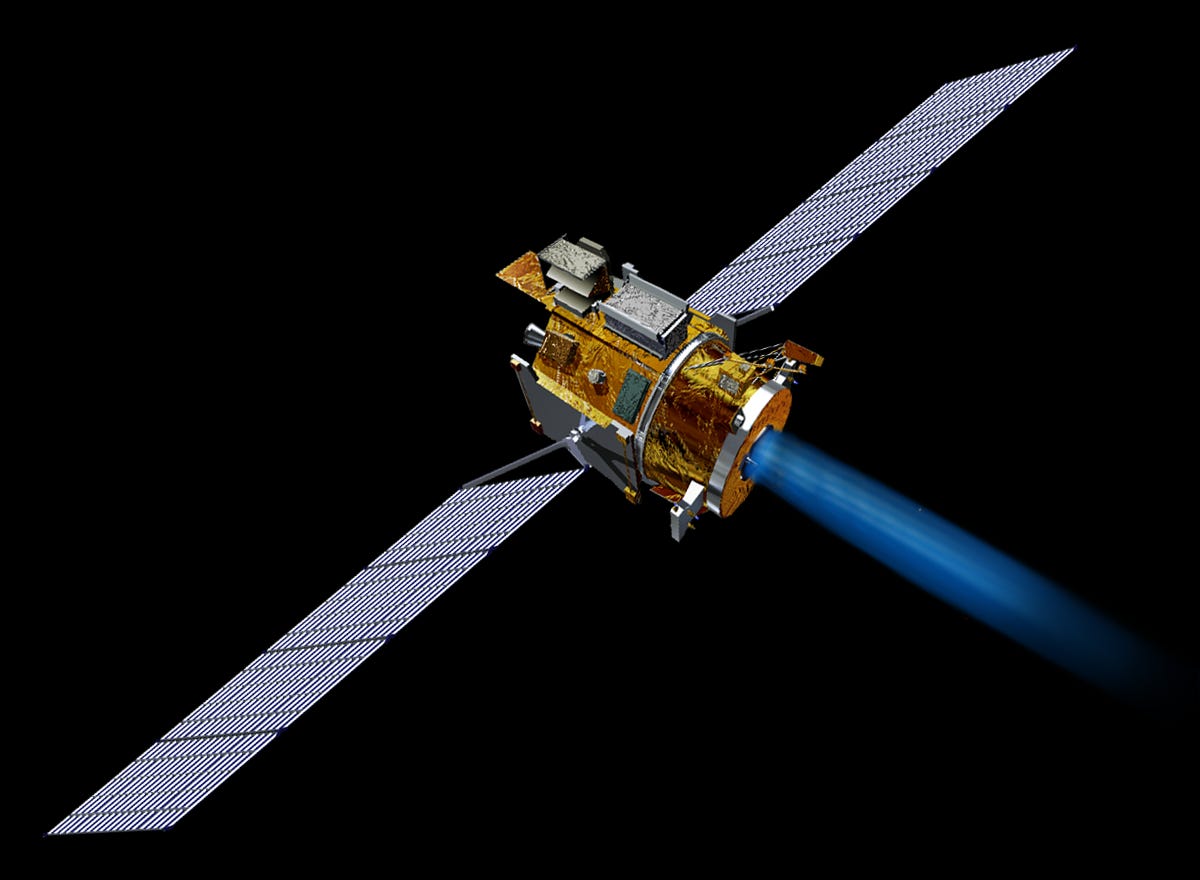

Ion propulsion has already found practical application in several space missions. The NASA Deep Space 1 mission, launched in 1998, marked the first use of ion propulsion as the primary means of propulsion for an interplanetary spacecraft. Deep Space 1 successfully demonstrated the long-duration operation of ion thrusters and their effectiveness in deep space missions.
Other notable missions employing ion propulsion include NASA's Dawn spacecraft, which explored the asteroids Vesta and Ceres, and the ESA's BepiColombo mission to Mercury. Additionally, ion thrusters are extensively used in geostationary satellites for station-keeping maneuvers.
Potential Future Applications
The future of ion propulsion holds immense promise for space exploration. As technology continues to advance, researchers are working on developing more powerful ion thrusters, increasing their thrust capabilities while maintaining efficiency. Ongoing research focuses on improving ion thruster lifetimes, reducing power requirements, and investigating alternative propellants. The potential for ion propulsion to enable ambitious missions to outer planets, asteroids, and even interstellar travel is a tantalizing prospect that drives ongoing research in this field.
In conclusion, ion propulsion stands at the forefront of space propulsion technology, offering remarkable advantages and revolutionizing our approach to space exploration. With its high efficiency, extended mission capabilities, ongoing advancements, and expanding mission portfolio, ion propulsion is poised to take humanity to new frontiers, fueling our curiosity and expanding our understanding of the universe.
