Unlocking the Cosmos
How Scientists Identify Gases and Detect Water on Planets and Stars
A recent article stated:
Scientists have long thought that the ice giants – Uranus and Neptune – have a hot, dense fluid of icy water, methane and ammonia around their cores. But on November 25, 2024, scientists at the University of California, Berkeley, suggested a different scenario. Instead, they said the interiors of the two giant planets might be more layered, with deep global oceans of water beneath their atmospheres.
The quest to understand celestial objects—planets, stars, moons, and beyond—relies on unraveling the mysteries of their composition. Scientists have developed a suite of techniques to identify gases present in these objects and to determine whether a planet harbors water, a key ingredient for life as we know it. This article delves into the science and methodology behind these techniques, explaining their significance and providing recent examples of groundbreaking discoveries.
1. Spectroscopy: The Cosmic Fingerprint
What It Is:
Spectroscopy involves analyzing the light emitted, absorbed, or reflected by an object. Each element and molecule interacts with light in unique ways, leaving characteristic spectral lines—essentially, a fingerprint in the light's spectrum.
How It Is Done:
Scientists observe the light from a star, planet, or another source using instruments called spectrometers.
Absorption spectroscopy detects specific wavelengths absorbed by gases in an atmosphere when light passes through it.
Emission spectroscopy measures light emitted by excited atoms or molecules, often caused by heat or chemical reactions.
Infrared spectroscopy is particularly useful for detecting water vapor, methane, and carbon dioxide because these molecules interact strongly with infrared light.
Recent Examples:
In 2023, the James Webb Space Telescope (JWST) analyzed the atmosphere of the exoplanet WASP-39b, detecting carbon dioxide for the first time on a planet outside our solar system.
Spectroscopic data from Mars rovers, such as Perseverance, have identified minerals indicating the historical presence of liquid water.
2. The Transit Method for Exoplanets
What It Is:

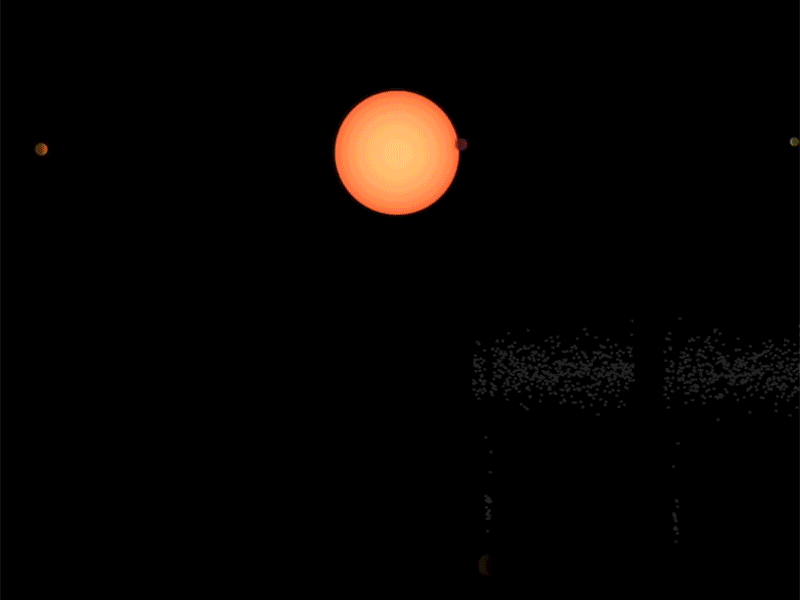

The transit method uses the dimming of a star’s light when a planet passes in front of it to gather information about the planet's size, orbit, and atmospheric composition.
How It Is Done:
A telescope observes the light from a star.

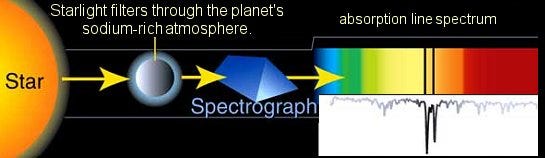

When a planet transits (moves in front of the star), starlight passes through the planet’s atmosphere.
The atmosphere absorbs light at specific wavelengths corresponding to the gases it contains.
This filtered starlight is analyzed to identify the spectral lines of atmospheric components.
Recent Examples:
In 2022, JWST used the transit method to study the atmosphere of the hot exoplanet WASP-96b, detecting water vapor, sodium, and potassium in its atmosphere.
The Hubble Space Telescope also used this method to identify water vapor in the atmosphere of K2-18b, a potential candidate for habitability.
3. Direct Imaging and High-Resolution Spectroscopy
What It Is:
Direct imaging involves isolating and observing the light from a planet or distant star, allowing scientists to analyze its spectrum without interference from the parent star.
How It Is Done:
Advanced telescopes equipped with coronagraphs or starshades block out the light of the central star to reveal dimmer objects like exoplanets.
High-resolution spectrometers capture the light spectrum of the observed object.
Scientists use the spectrum to identify gases such as oxygen, methane, and water vapor.
Recent Examples:
The European Southern Observatory’s Very Large Telescope (VLT) captured a direct image of the exoplanet Beta Pictoris c in 2020, revealing hints about its atmosphere.
JWST recently captured direct images of the planet HIP 65426 b, analyzing its composition in unprecedented detail.
4. Radio Astronomy: Tuning into Invisible Signals
What It Is:
Radio astronomy studies radio waves emitted by celestial objects. Certain molecules, such as ammonia or hydrogen, emit characteristic radio frequencies, providing insights into the chemical makeup of planets and stars.
How It Is Done:
Radio telescopes detect radio waves from distant sources.
The observed frequencies are matched with known emission patterns of gases.
This method is especially useful for studying molecular clouds, gas giants, and atmospheres.
Recent Examples:
In 2021, the Atacama Large Millimeter/submillimeter Array (ALMA) detected phosphine in the atmosphere of Venus, sparking debates about the potential for microbial life.
Radio signals from Jupiter, detected by the Juno mission, revealed details about the giant planet’s magnetosphere and atmosphere.
5. Radar and Remote Sensing for Solar System Objects
What It Is:
Radar and remote sensing techniques involve bouncing radio or microwave signals off planetary surfaces and analyzing the reflected waves to infer surface and subsurface properties.
How It Is Done:
Radar instruments onboard spacecraft send signals to a planet or moon and record the reflections.
Differences in the reflected signals provide information about surface materials and structures.
This technique can identify features like ice layers or underground lakes.
Recent Examples:
The European Space Agency’s Mars Express mission used radar to discover subsurface lakes of liquid water beneath the Martian south pole in 2018.
NASA’s Lunar Reconnaissance Orbiter used radar to identify regions of water ice on the Moon's poles.
6. Detection of Water
What It Is:
The search for water involves identifying it in various forms—vapor, liquid, or ice—using a range of observational techniques.
How It Is Done:
Infrared Spectroscopy: Sensitive to water vapor in planetary atmospheres.
Direct Imaging: Used to detect ice on surfaces of moons and planets.
Microwave and Radar Analysis: Reveals water ice beneath the surface by detecting how radio waves interact with the material.
Mass Spectrometry: Spacecraft can sample the atmosphere or eject material to detect water content directly.
Recent Examples:
In 2022, NASA’s Perseverance rover detected hydrated minerals in Jezero Crater on Mars, suggesting ancient water activity.
Observations by the Cassini spacecraft revealed subsurface oceans on Saturn’s moon Enceladus, confirmed by plumes of water vapor erupting from its icy surface.
7. Doppler Shift and Motion Analysis
What It Is:
The Doppler shift technique studies changes in the wavelength of light caused by the motion of a star or planet relative to Earth. It helps infer atmospheric conditions and compositions.
How It Is Done:
Telescopes measure the wavelengths of light emitted by celestial objects.
Variations in these wavelengths, caused by motion, reveal the velocity and rotation of the object.
Atmospheric properties are inferred from these changes.
Recent Examples:
Observations of HD 209458b, a well-studied exoplanet, revealed atmospheric winds and the presence of sodium through Doppler analysis.
The detection of methane on Titan (a moon of Saturn) involved Doppler measurements coupled with spectroscopic techniques.
8. Laboratory Simulations and Computational Models
What It Is:
Simulations and models replicate celestial conditions to predict or confirm the presence of specific gases or water.
How It Is Done:
Spectroscopic data are compared with laboratory measurements of known substances.
Computational models simulate atmospheric chemistry under expected planetary conditions.
Recent Examples:
Laboratory experiments simulating Venus-like conditions helped validate the discovery of sulfur dioxide in its atmosphere.
Models predicting the stability of water on Mars align with findings of hydrated minerals on the planet’s surface.
Key Tools and Missions Driving Discoveries
Several state-of-the-art telescopes and missions enable these techniques:
James Webb Space Telescope (JWST): Offers unmatched capabilities in infrared spectroscopy, revolutionizing our understanding of exoplanet atmospheres.
Hubble Space Telescope: Continues to provide valuable insights into atmospheric compositions.
Mars Rovers: Such as Perseverance and Curiosity, directly sample rocks and soil for water and organic molecules.
Future Missions: The upcoming Ariel mission will focus on characterizing exoplanet atmospheres.
Understanding the composition of planets, stars, and other celestial objects is fundamental to unraveling the universe's mysteries. Techniques like spectroscopy, the transit method, and radar analysis have become the cornerstone of modern astrophysics, enabling discoveries of far-off worlds and their potential habitability. As technology advances, the search for water and life beyond Earth becomes increasingly promising, bringing us closer to answering the age-old question: Are we alone in the universe?
