Vertical and Short Takeoff and Landing (V/STOL)
Flying without Needing a Big Runway!
Introduction
Imagine being able to fly an airplane that doesn't need a long runway to take off or land. How cool would that be? That’s exactly what V/STOL (Vertical and Short Takeoff and Landing) systems are all about! Let’s dive in to understand what these terms mean, the amazing technology behind them, and how they’ve changed over time.
What’s V/STOL All About?
V/STOL is like a superhero for airplanes. Normally, planes need long runways to gain enough speed to lift off the ground or to slow down when they land. But with V/STOL, planes can take off and land vertically (straight up and down), or with just a short runway.
There are a few different kinds of V/STOL systems:
VTOL (Vertical Takeoff and Landing): The plane lifts off straight up like a helicopter and can land the same way. No need for runways at all!
STOL (Short Takeoff and Landing): The plane needs a small runway, but it's much shorter than what you see at big airports.
STOVL (Short Takeoff, Vertical Landing): A mix of both! The plane might need a short runway to take off but can land vertically like a helicopter.
Why Does It Matter?
V/STOL systems are super important for different reasons:
Space-Saving: In crowded places like big cities or on ships, you don’t always have space for long runways. VTOL planes can take off and land in tight spots.
Military Use: Imagine you're in a remote area or on a ship at sea. VTOL and STOVL planes are perfect for these situations because they don’t need long runways.
Emergency Landings: If something goes wrong mid-flight, VTOL planes can land quickly and safely on a small patch of land.
A Look Through History: How VTOL Came to Life
People have been dreaming of planes that can take off and land vertically for a long time! Let’s go through some wild (and sometimes wacky) designs that engineers have come up with over the years.
Convertiplanes
These are aircraft that can switch between helicopter mode and airplane mode. They’ve got rotor blades like a helicopter for taking off vertically, but they can also switch to regular airplane flight for faster speeds.
Tiltrotor: This design has propellers that can tilt from vertical to horizontal. So, when you want to take off, the rotors face upward. When you're ready to fly fast, they tilt forward. The V-22 Osprey is a famous example.

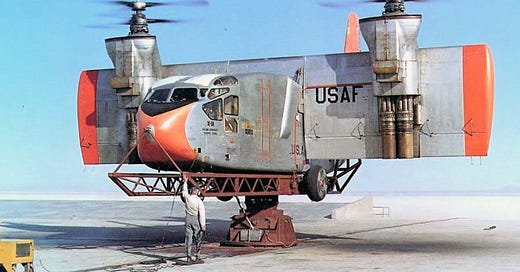

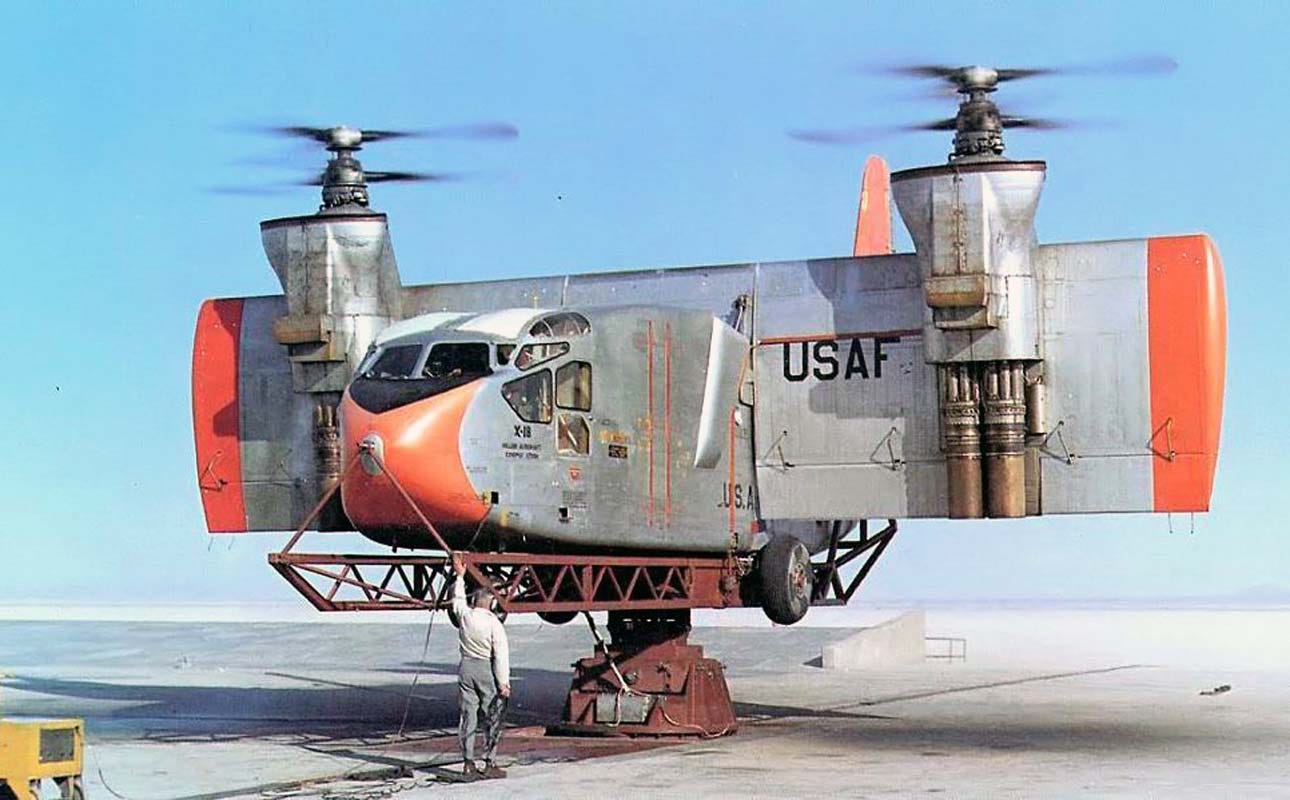

Tiltwing and Tiltjet
Similar to tiltrotors, but here, instead of just the propellers tilting, tiltwings have the whole wing rotate! As for tiltjets, they use jet engines that can tilt. This idea lets the aircraft take off vertically and then transition to flying like a normal plane.

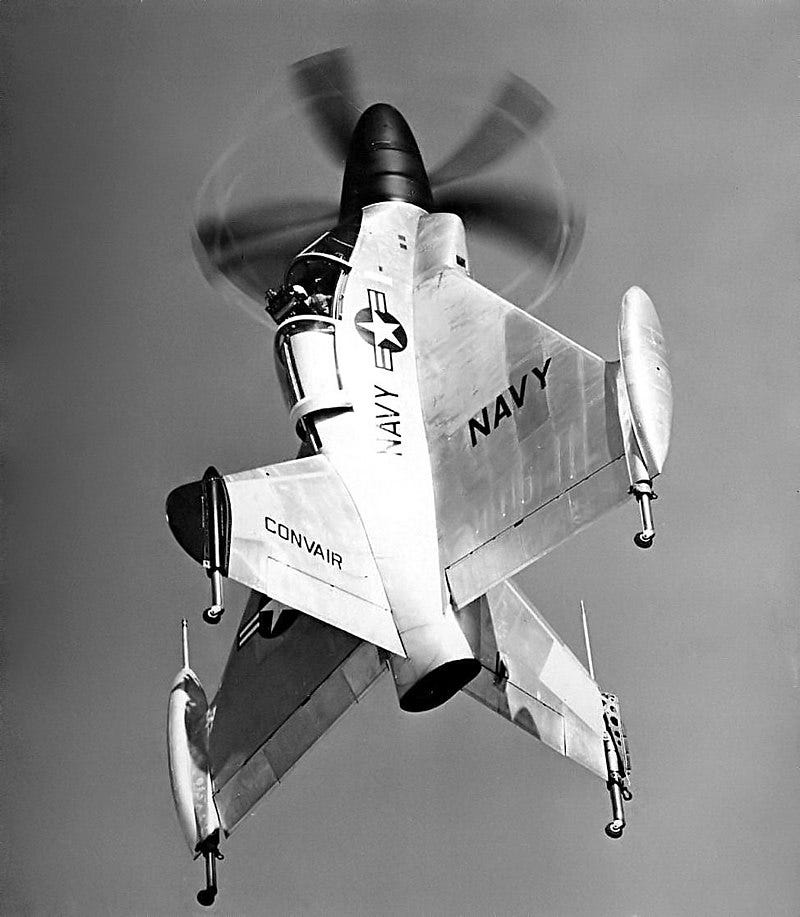

Convair XFY Pogo
Ever heard of an airplane that takes off like a rocket and then flies like a normal plane? Meet the Convair XFY Pogo! This experimental plane from the 1950s could stand vertically on its tail, take off straight up, and then tilt forward to fly like a regular airplane. Cool idea, but it was super tricky for pilots to land because they had to look over their shoulder to guide it back down!

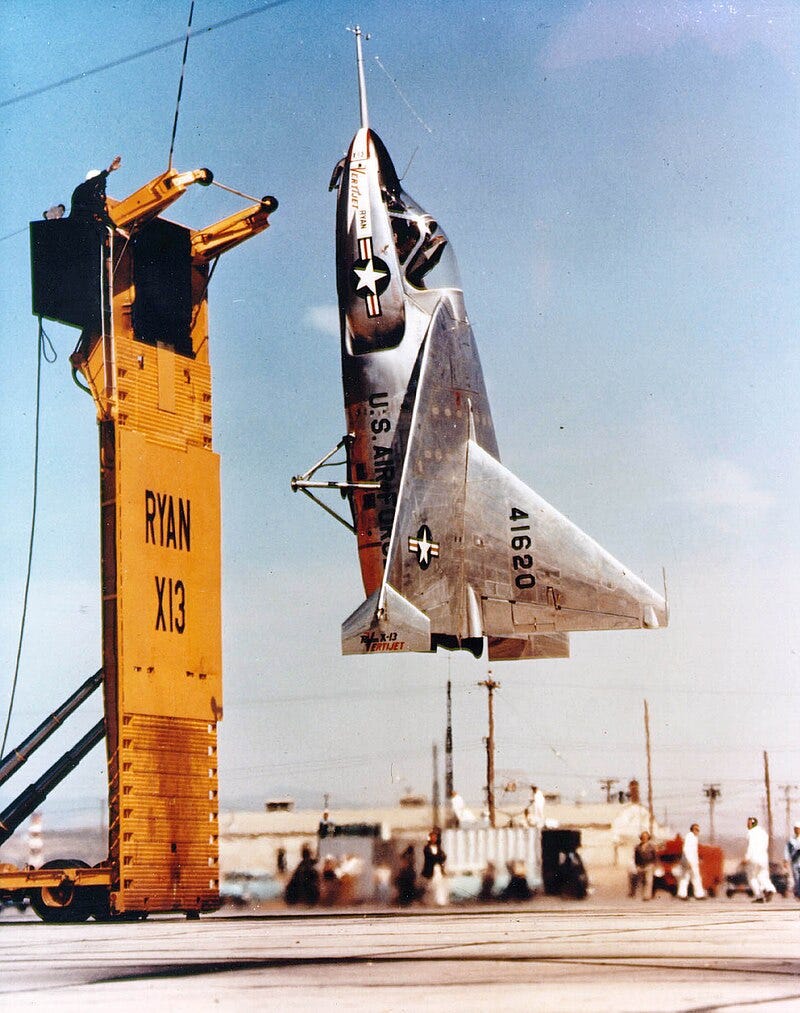

Ryan X-13 Vertijet
Another quirky design from the 1950s, the Ryan X-13 Vertijet was a tiny jet plane that could hover vertically and land the same way. It was a little jet that could hang vertically from a special trailer and take off right from there. While it looked like a great idea, it was never used widely.
What Actually Worked?
So, what designs made it beyond the drawing board and became real-world successes?

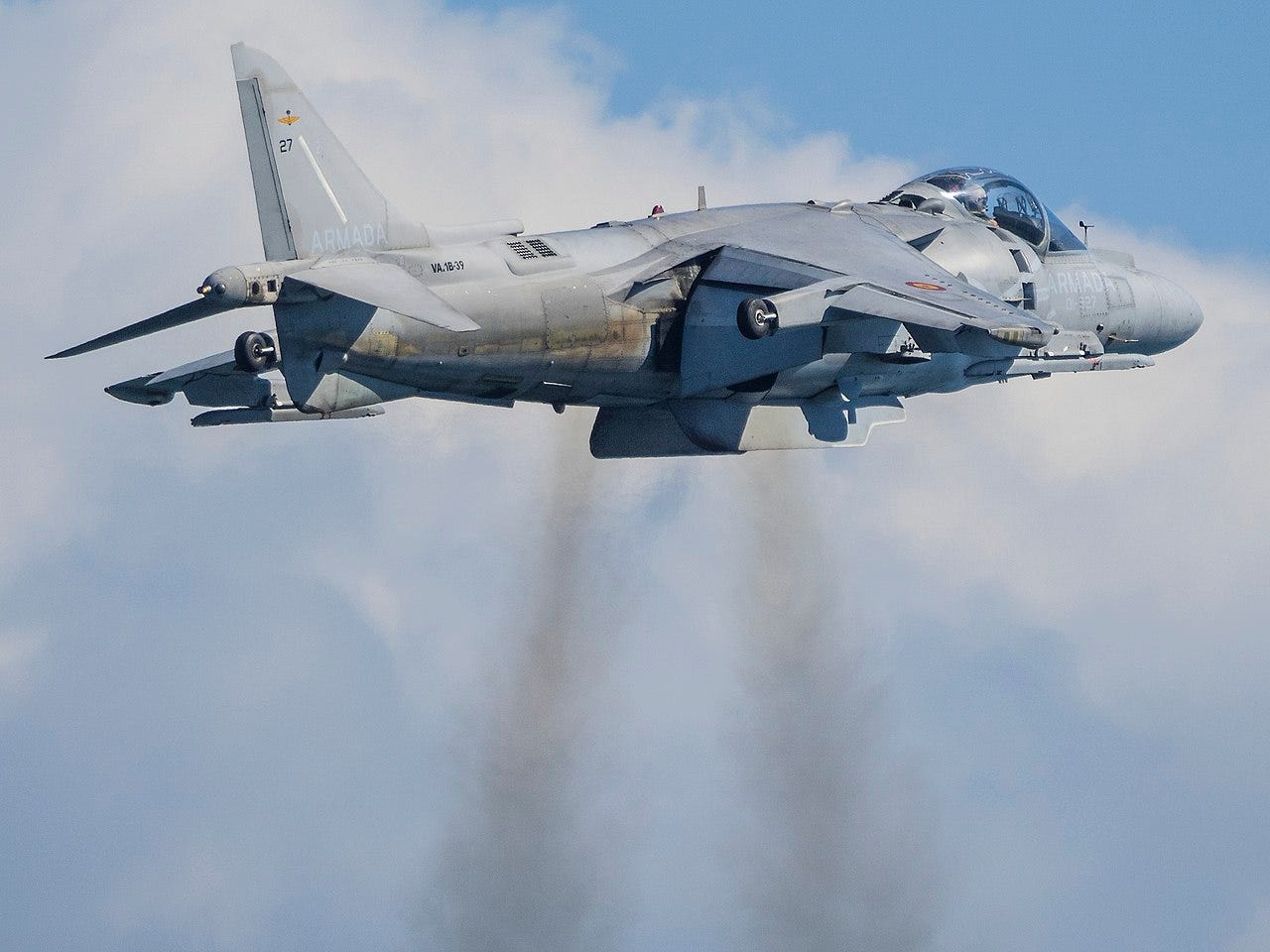

Harrier Jump Jet: This is probably the most famous VTOL aircraft ever. The Harrier can take off vertically using powerful jet nozzles that direct thrust downward, then tilt for forward flight. It was used by the military and proved to be highly effective, especially in places with no runways.

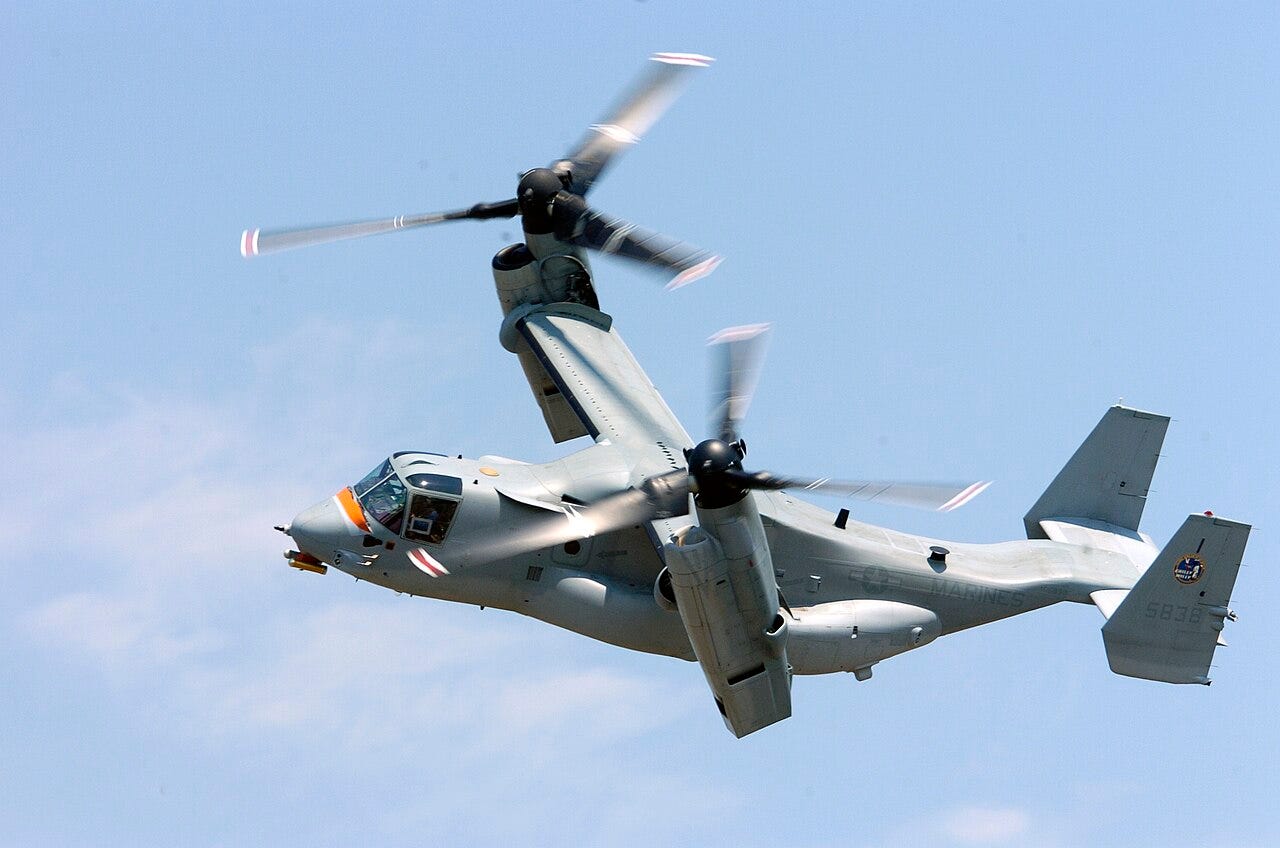

V-22 Osprey: This tiltrotor aircraft is another success story. It combines the abilities of a helicopter with the speed and range of an airplane. The Osprey can land on ships and tight spaces, making it ideal for military and rescue missions.
The Challenges of V/STOL
Now, while V/STOL systems are super useful, they’re not perfect. Here are a few reasons why they aren’t everywhere:
Complexity: These planes need very complicated engineering to pull off both vertical and horizontal flight. That means more moving parts and a higher chance of things going wrong.
Fuel-Efficient? Not So Much: Lifting a plane straight up into the air takes a lot of fuel. It’s much less efficient than taking off the usual way with a long runway.
Cost: All that fancy engineering costs money. Building and maintaining V/STOL aircraft can be super expensive, which is why they’re mostly used by the military.
What Could the Future Look Like?
As technology gets better, VTOL planes might become more common, maybe even for everyday flights! Some companies are working on electric VTOLs (eVTOLs) that could be used like flying taxis in big cities.
And now the big question for you: What other cool ways can you think of to make VTOL systems work better for airplanes? Maybe a mix of drone technology? Or something that hasn’t been thought of yet? Share your thoughts in comments or even discuss upon this with your aviation friends!
Let your imagination take off!
