Weird and Wonderful Airplane Shapes
With photographs!
Just 10 days left for the launch of our next educational playing cards.

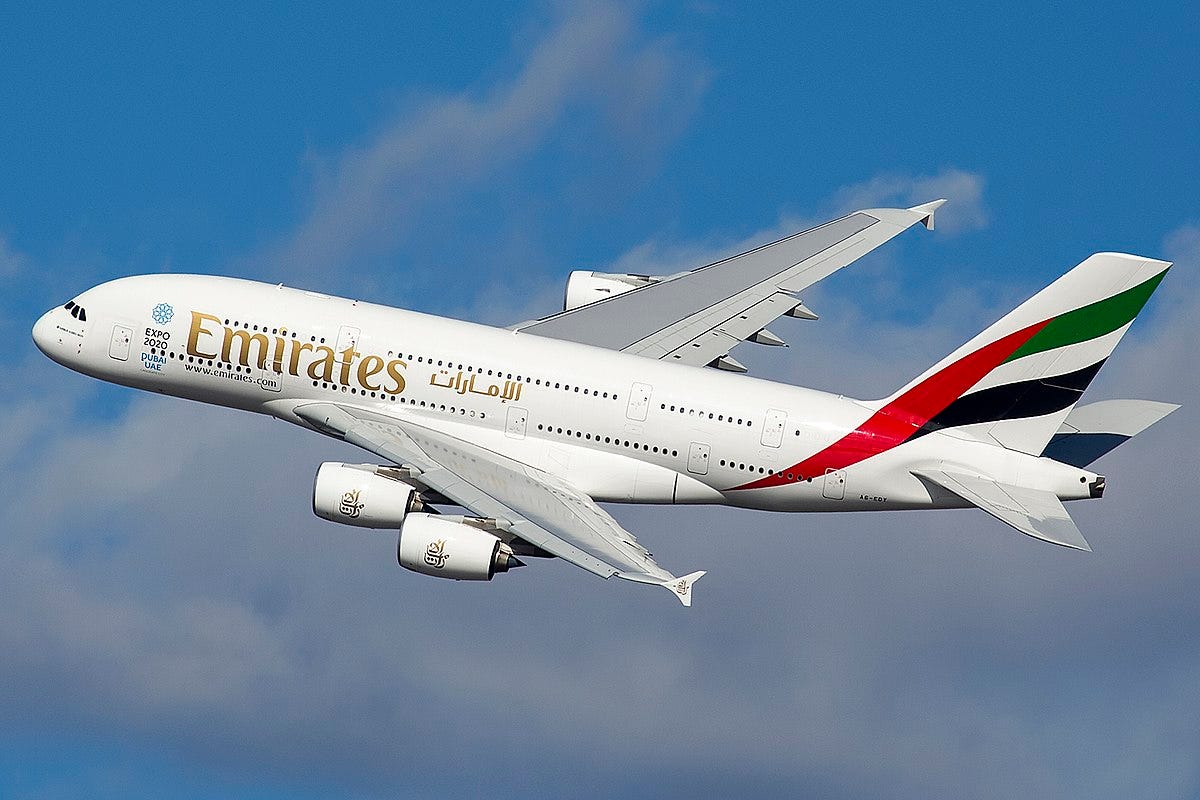

When we think about airplanes, most of us picture the usual design: one big wing on each side of the fuselage, the body where we sit. This common type is called a monoplane. It’s the one we all see flying overhead, carrying passengers, cargo, and sometimes both!
Monoplanes are so popular because they’re simple, efficient, and great for most kinds of flying. Think about commercial jets like the Boeing 737 or Airbus A320. They all follow this basic pattern.
But guess what? Not all planes look like that! Aviation engineers are a creative bunch, and over the years, they’ve come up with all kinds of wild and wonderful airplane shapes. From planes with double bodies to ones that seem like they forgot their tails, let’s dive into some of the coolest airplane configurations you’ve probably never heard of!
1. Biplane
If you’ve ever seen a picture of a plane from World War I, chances are you’ve seen a biplane. It has two wings stacked on top of each other, usually close to the fuselage.

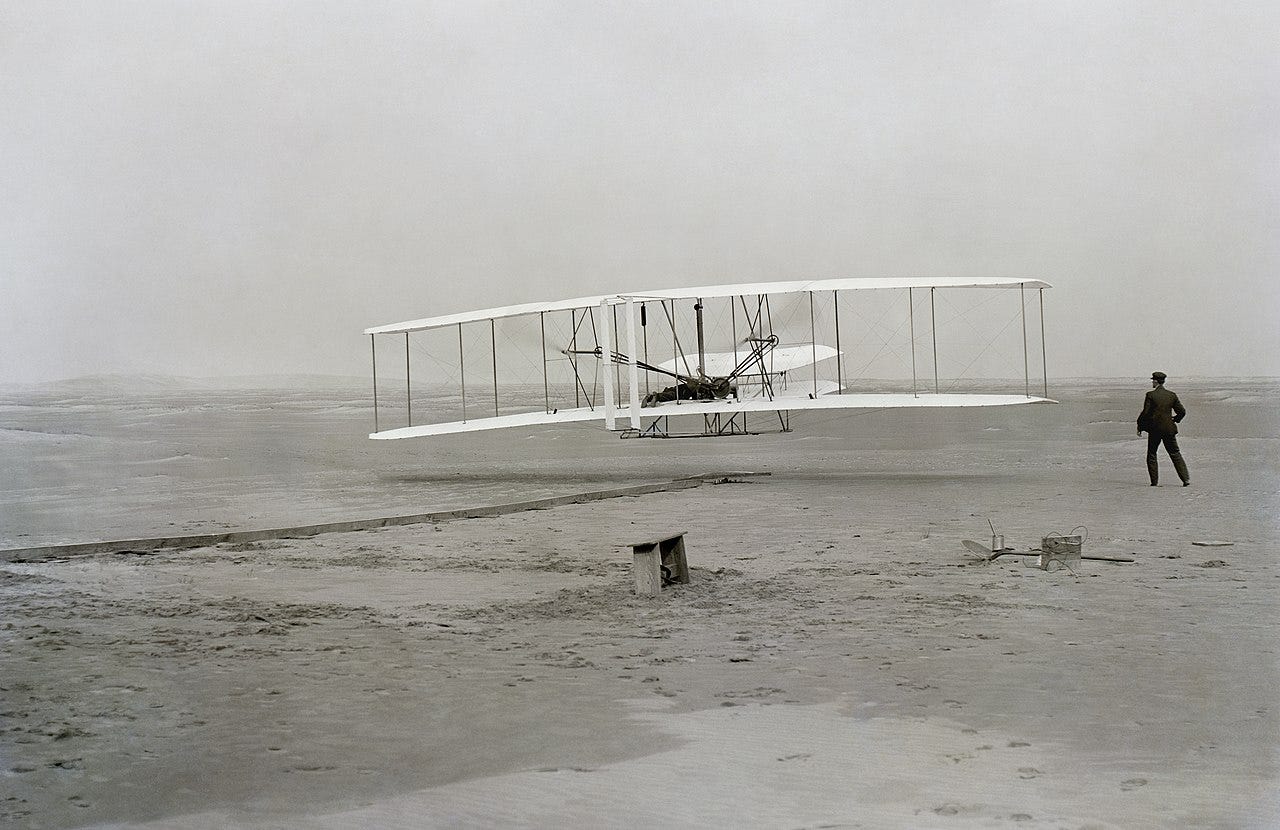

Example: The famous Wright Flyer, designed by the Wright brothers is a classic biplane.
Advantages: The two wings create extra lift, so biplanes can fly slower without stalling. This made them great for early combat and acrobatics.
Disadvantages: That extra wing also means more drag, which makes biplanes slower than monoplanes.
Biplanes were dominant in early aviation because engineers didn’t have strong enough materials to build single large wings yet!
2. Tandem Wing Plane
A tandem wing plane has two sets of wings: one in the front and one in the back, instead of the usual left and right. Think of it like the wings are stacked but spread out.
Example: The Fauvel AV.36 is a good example. It’s a glider with this quirky design.
Advantages: Tandem wings can give better balance, stability, and shorter takeoffs and landings.
Disadvantages: It’s tricky to get both wings to work perfectly together, and it can create more drag, slowing the plane down.
3. Twin Boom
A twin boom airplane has two connectors (or “booms”) on either side of the plane, usually with the tail section in the middle of them.

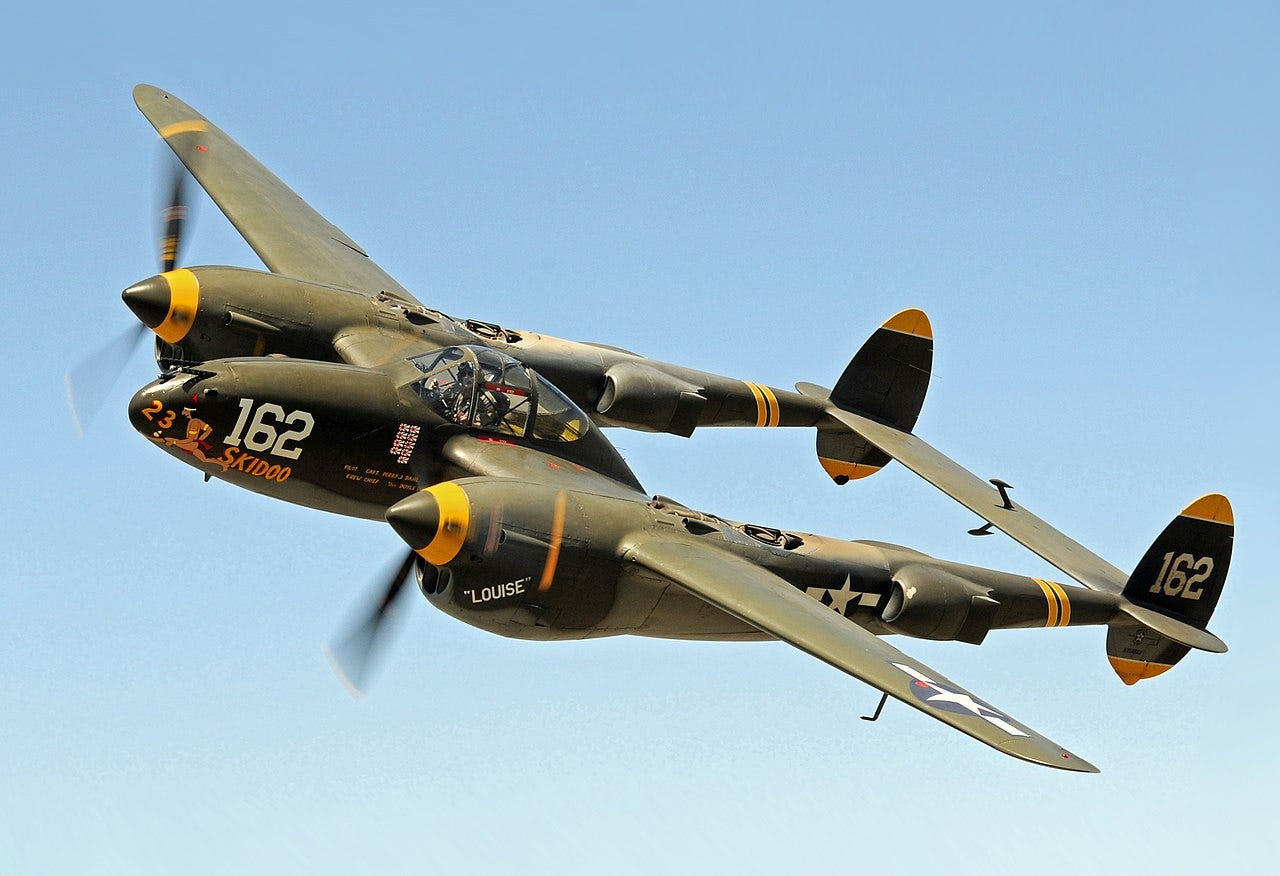

Example: The Lockheed P-38 Lightning is a famous twin-boom plane used in WWII.
Advantages: Twin booms allow for a more compact, balanced design, and they can fit bigger engines or weapons in the middle.
Disadvantages: The twin structure adds weight and complexity to the build, making it more expensive and harder to maintain.
Fun Fact: The P-38 was known as the "fork-tailed devil" by the Germans during WWII!

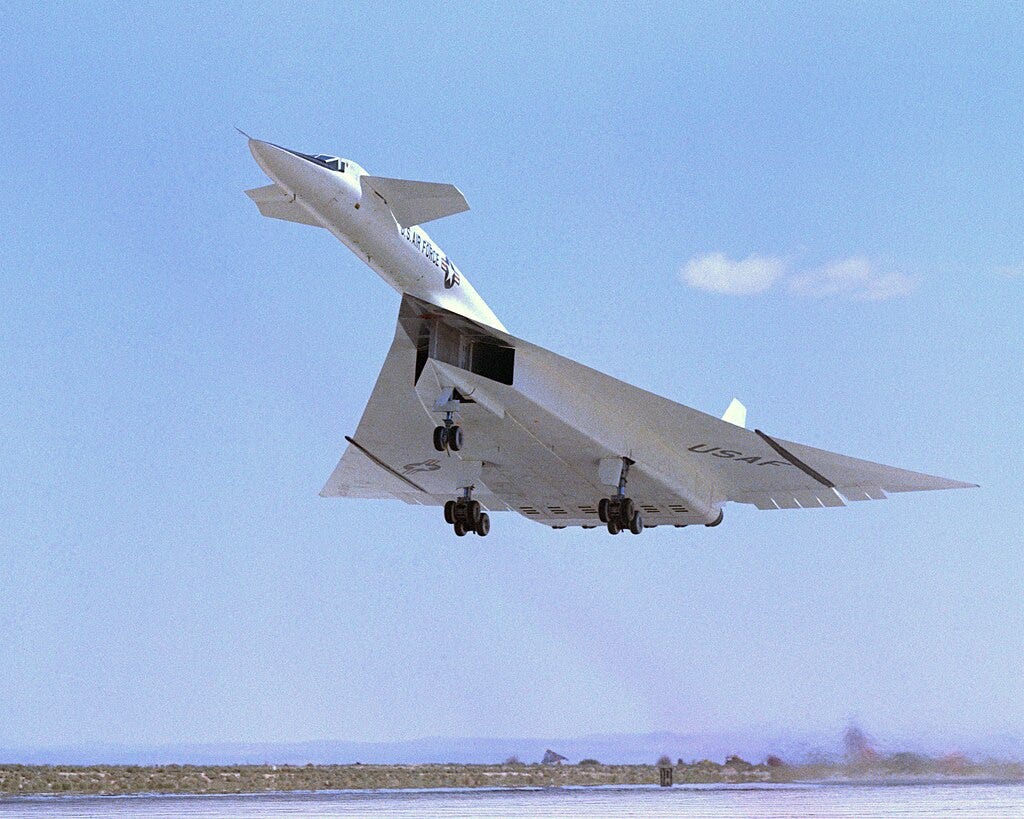

4. Canard Configuration
A canard configuration places a small set of wings (canards) near the nose of the plane, instead of having a horizontal tail at the back.

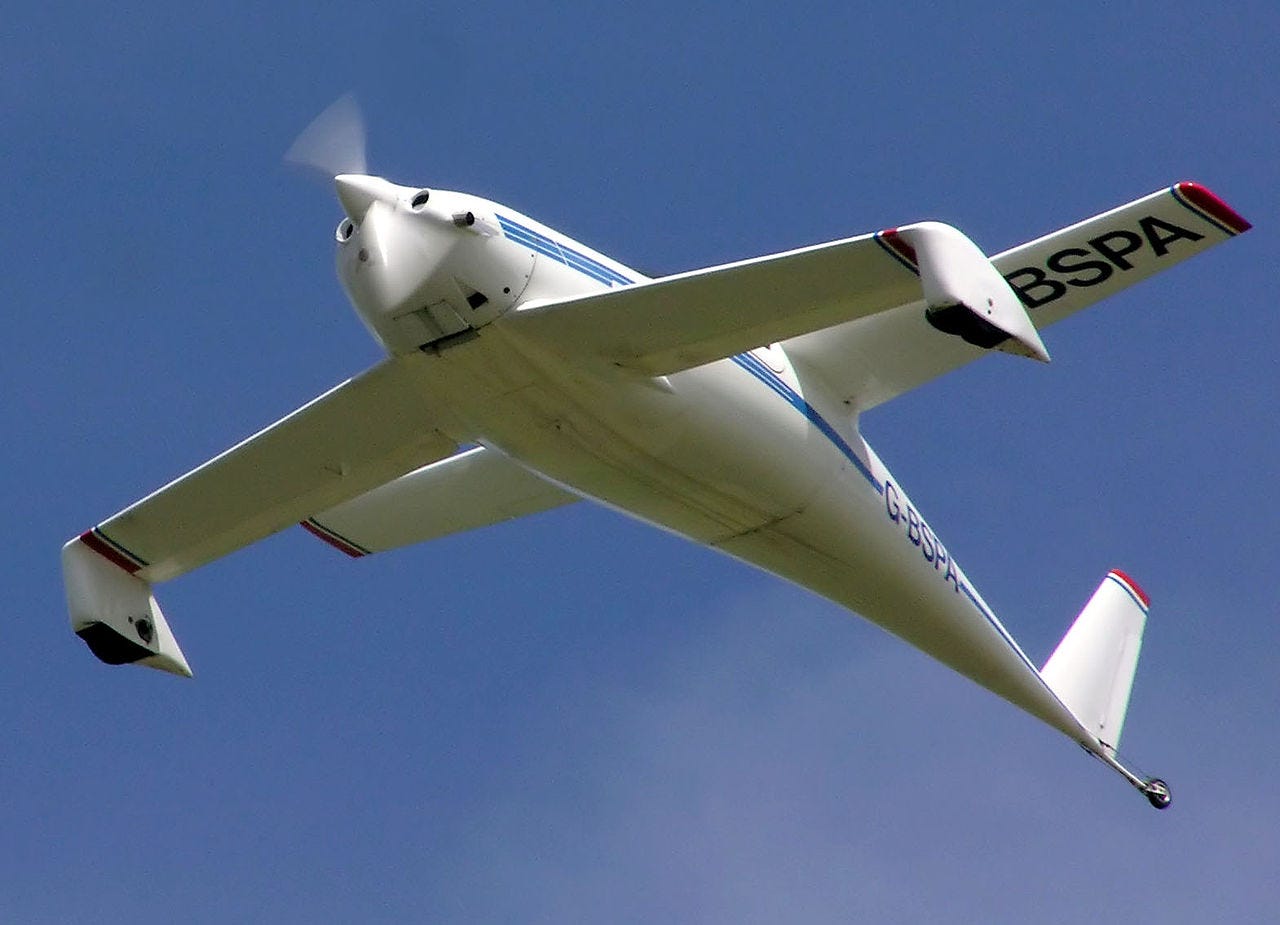

Example: The Rutan VariEze is a famous home-built airplane with this design. Even the Wright Flyer had a canard in front. Scroll up to check the image again.
Advantages: Canard planes are more stable at high speeds and can reduce the chances of a dangerous stall.
Disadvantages: The canard wings can interfere with airflow to the main wings, causing drag and lowering overall efficiency.
Fun Fact: The word “canard” comes from the French word for “duck” because these planes kind of look like a duck flying!
5. Twin Tail
Planes with a twin tail have two vertical stabilizers (the upright fin at the back), instead of the usual single tail.

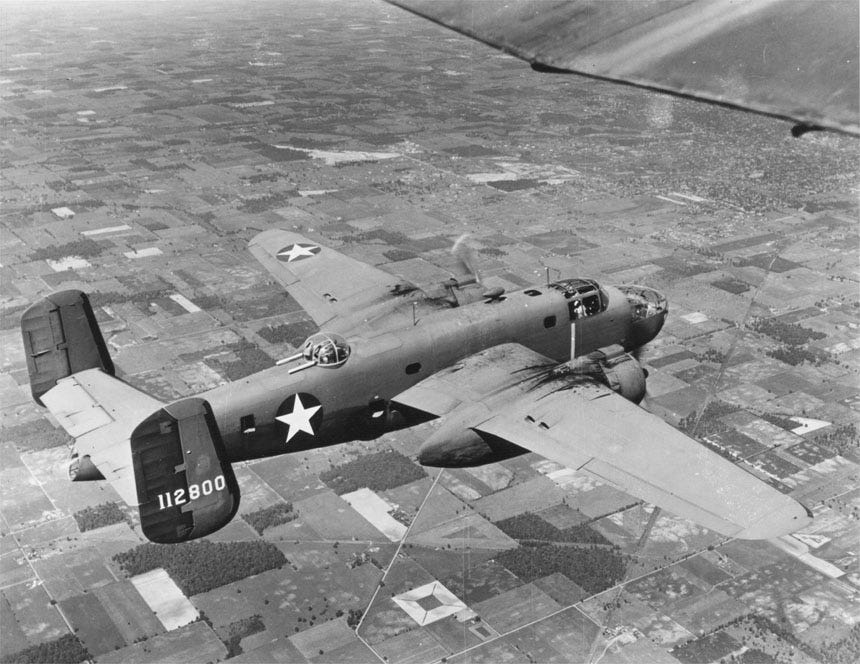

Example: The B-25 Mitchell bomber from WWII is a great example of a twin-tail design.
Advantages: Twin tails improve stability and control, especially in yaw (side-to-side movement). This is helpful for large planes, especially bombers.
Disadvantages: Two tails mean more weight, drag, and complexity in the tail section.
6. Tailless Plane
As the name suggests, tailless planes don’t have the usual tail section. There is no separate horizontal surface in addition to the main wing.

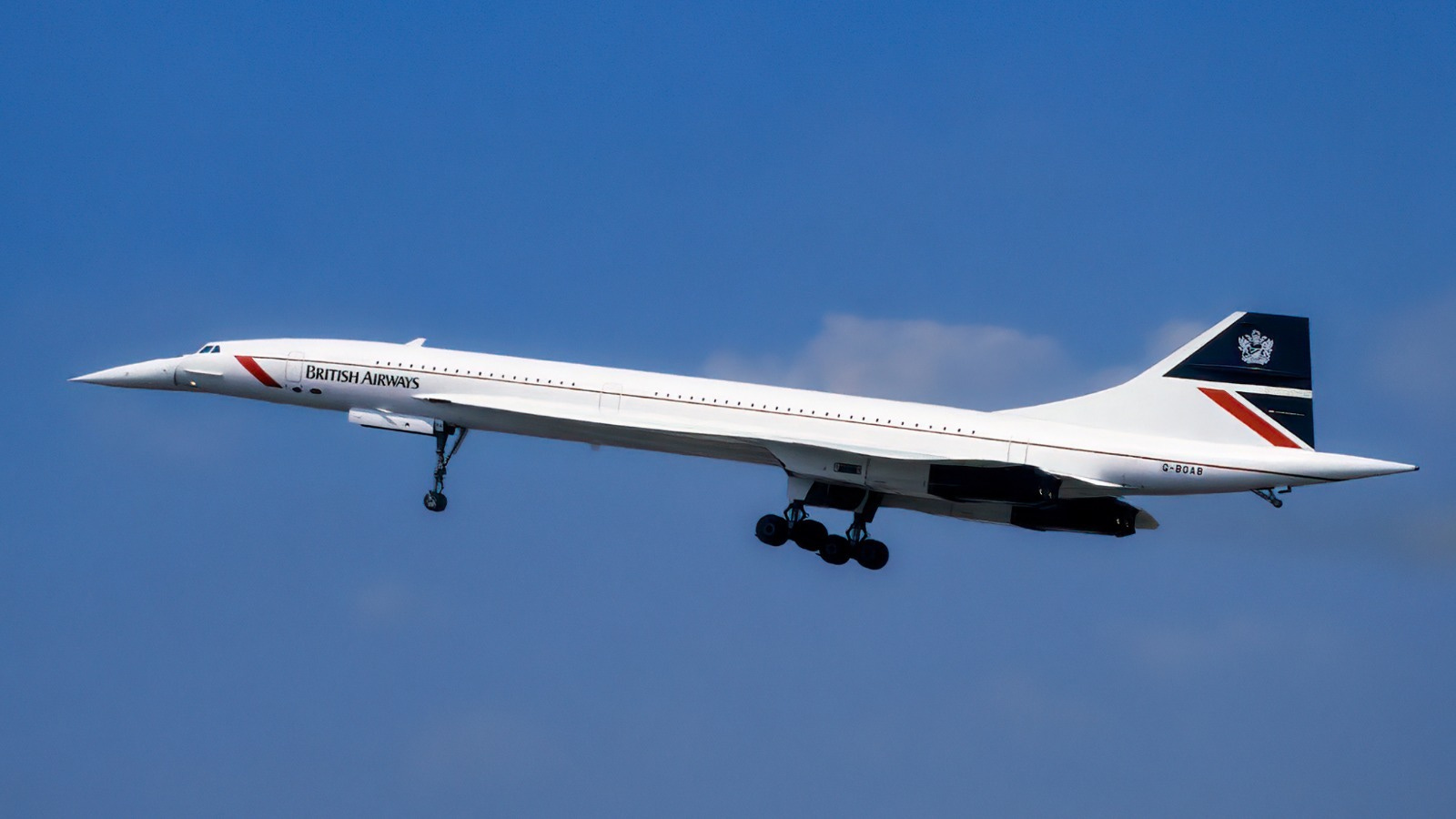

Example: The famous Concorde supersonic airplane was a tail-less airplane.
Advantages: Without a tail, these planes have less drag, making them faster and more fuel-efficient.
Disadvantages: Controlling these planes can be tricky since they lose the stabilizing effect of the tail, requiring advanced flight control systems.
Fun Fact: The B-2 Spirit stealth bomber is sort of tailless. It uses advanced technology to stay stable in the air!
7. Twin Fuselage

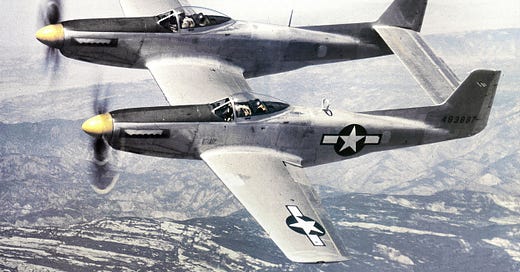

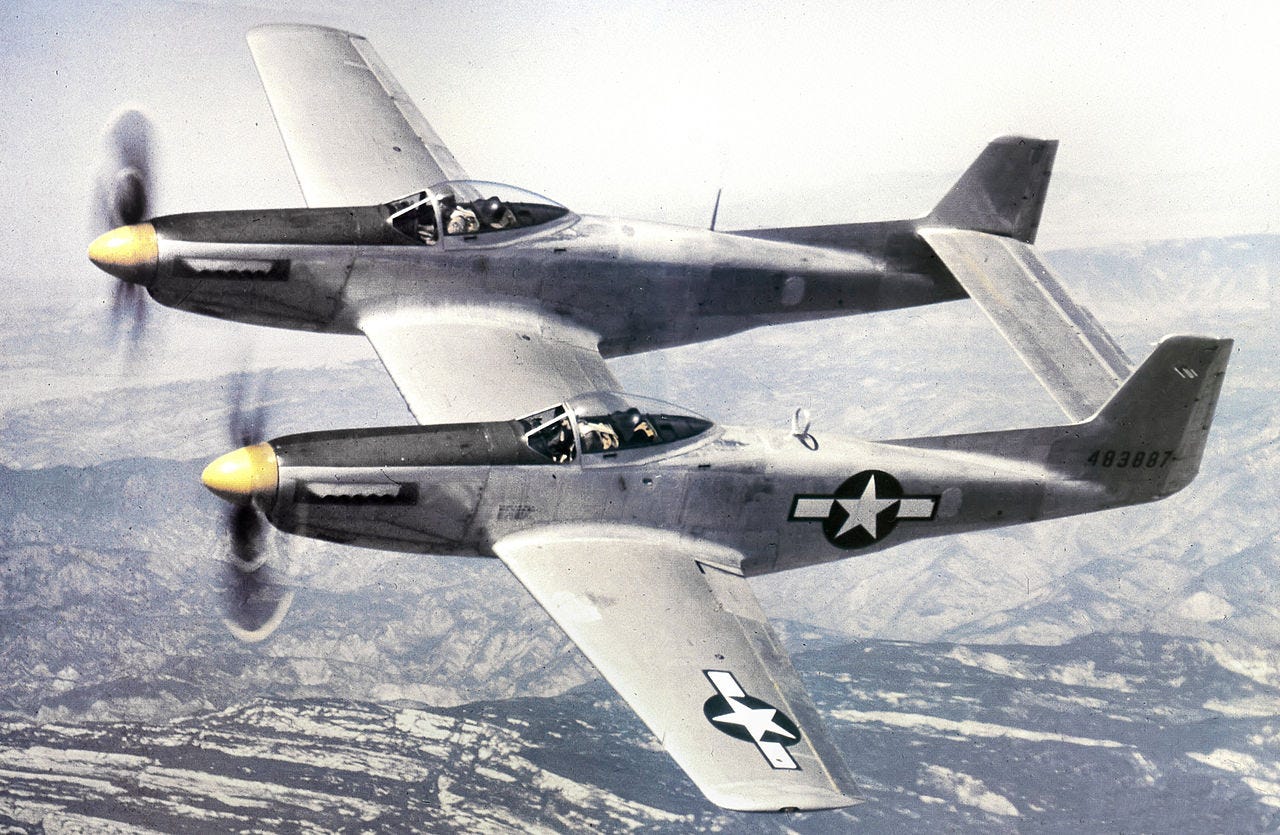

This design is exactly what it sounds like—two fuselages joined by wings or a central section. It can come across similar to the twin-boom we discussed above. The main difference here is, this design has a complete fuselage with a pilot seat.
Example: The Scaled Composites Stratolaunch is a modern twin-fuselage plane, designed to carry rockets for launch into space.
Advantages: Twin fuselages allow planes to carry larger payloads, especially for space missions or heavy cargo.
Disadvantages: They can be hard to maneuver and are usually used for specific missions, not everyday flying.
Fun Fact: The Stratolaunch is the largest plane (by wingspan) ever built!
8. Asymmetrical Plane
An asymmetrical plane has a design where the left and right sides aren’t mirror images of each other. Yeah, it sounds wild, and it is! There is no law of physics that mandates a symmetric requirement. So, we engineers being engineers will definitely explore this too, right?

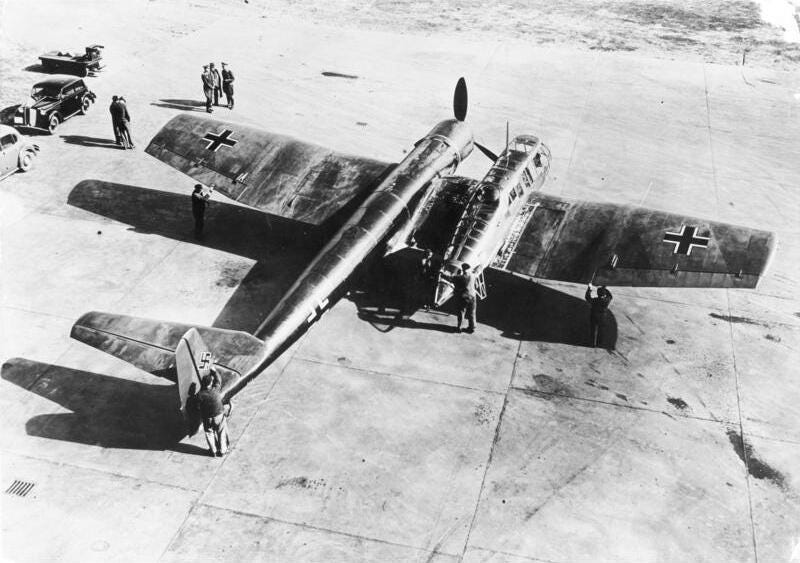

Example: The Blohm & Voss BV 141, used by Germany in WWII, is the most famous example.
Advantages: Asymmetrical designs can be used to improve visibility and balance for specific missions, like reconnaissance.
Disadvantages: The imbalance can make them tricky to fly, and they tend to look, well, weird.
Fun Fact: Despite its strange look, the BV 141 flew quite well, but it was never widely used.
9. Flying Wing
Flying wing planes are almost entirely made of wings! There’s no distinct fuselage or tail section.

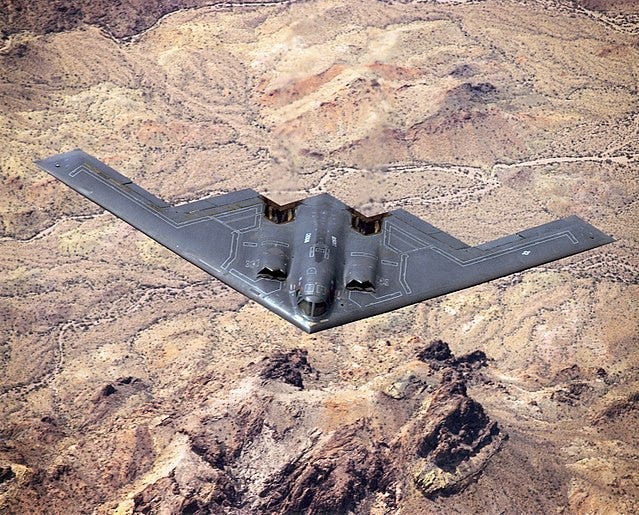

Example: The B-2 Spirit stealth bomber is the most famous flying wing aircraft.
Advantages: These planes are super efficient, with reduced drag and a lot of lift. They’re also really hard to detect on radar.
Disadvantages: Controlling a flying wing without a tail is difficult, and they’re not ideal for passenger planes since it’s hard to fit a large cabin inside the wing.
Fun Fact: The B-2 is designed for stealth missions and can fly undetected deep into enemy territory!
10. Lifting Body
So far we have seen airplanes without tails and without fuselage. Let’s remove wings now! A lifting-body aircraft has a fuselage that generates lift by itself, without needing large wings. The body is shaped so it creates lift as it moves through the air.

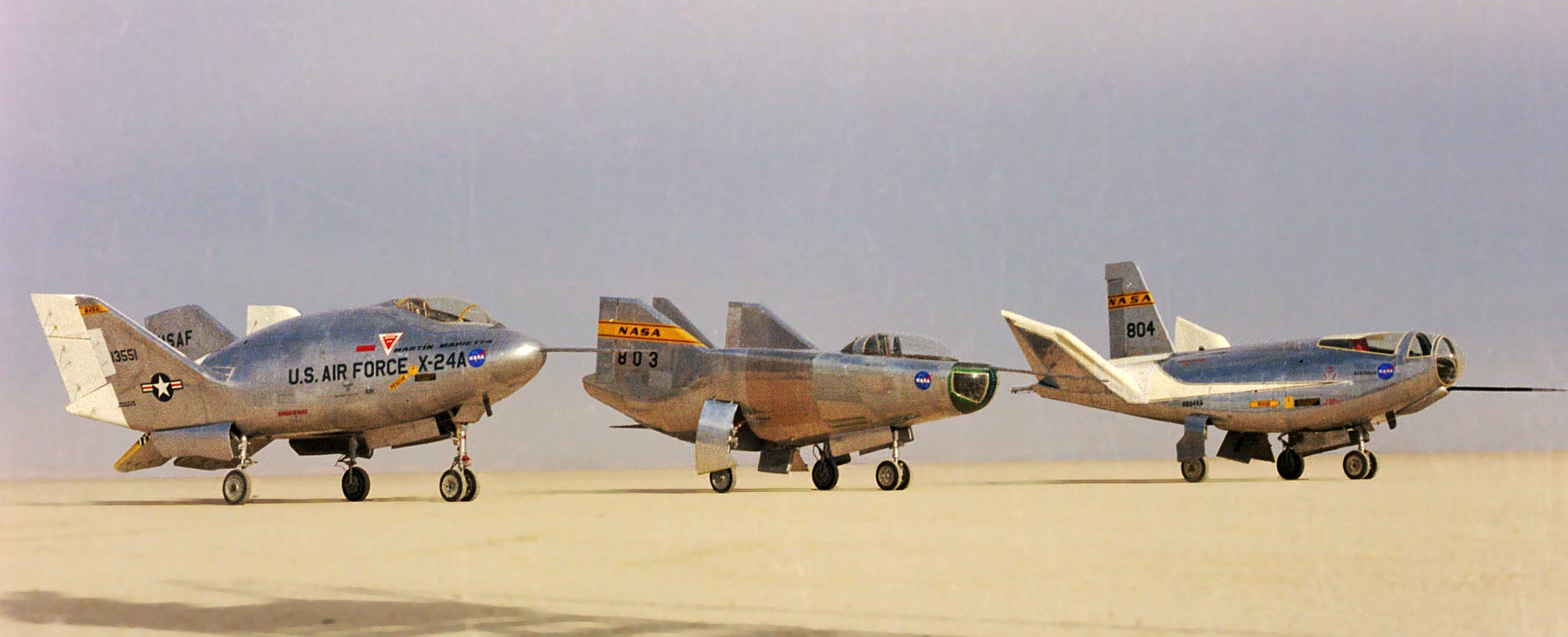

Example: NASA’s M2-F1 was one of the early experimental lifting body designs.
Advantages: Lifting body designs are great for space missions because they allow spacecraft to glide back to Earth more safely.
Disadvantages: Without wings, it’s harder to control the plane, and they’re not as efficient as winged designs for most applications.
Fun Fact: The lifting body concept was tested heavily by NASA for potential space shuttle designs!
